Description
Designed for durability and ease of use, the BR-M-S-200 features a robust mechanical structure and an intuitive PLC interface. Whether you are working on solid-state battery research or standard lithium-polymer cells, this machine provides the consistency required for reliable experimental data.
Why Choose BrtteryRing? Each unit undergoes a rigorous video outgoing-inspection and comes with a comprehensive machinery test report. We provide a one-year limited warranty and lifetime technical support to ensure your lab operations run smoothly.
Key Features (Bullet Points)

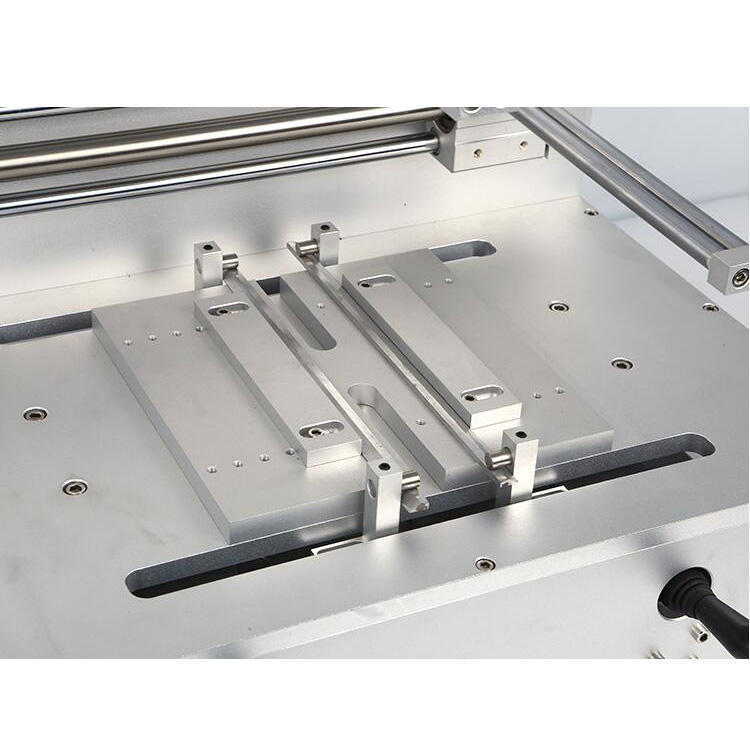

High Precision Stacking: Specifically designed for Z-folding of pouch cell electrodes and separators with high repeatability, ensuring stable cell performance in laboratory environments.
Flexible Stacking Sizes: Supports a wide range of stacking layer lengths and widths from 0mm to 200mm, making it ideal for various pouch cell prototype designs.
Advanced PLC Control: Equipped with high-quality core components and a Programmable Logic Controller (PLC) for precise cycle management and travel distance control.
Adjustable Parameters: Features a customizable travel cycle (1-9999 cycles) and fixed travel distance (400mm) to accommodate different electrode thicknesses and layer counts.
Compact & Lab-Ready: With a machine dimension of 650450600mm and a weight of 70kg, it fits perfectly on standard laboratory workbenches without occupying excessive space.
Universal Power Supply: Compatible with AC 110V-220V (50Hz/60Hz), allowing for global use in R&D centers and universities.
Technical Specifications
| Specification | Details |
| Brand Name | BrtteryRing |
| Model | Pouch Cell Stacking Machine AOT-M-S-200 |
| Core Components | PLC (Programmable Logic Controller) |
| Voltage Supply | AC 110v-220V 50Hz/60Hz ±10% (Customizable) |
| Power | 100W |
| Stacking Layer Size | L(0-200)mm, W(0-200)mm |
| Max Separator Feeding Dia. | 250mm |
| Fixed Travel Distance | 400mm |
| Travel Cycle | 1 – 9999 cycles |
| Air Supply | 0.25 – 0.55MPa |
| Machine Weight | 70 kg |
| Dimensions (LWH) | 650 * 450 * 600 mm |
| Place of Origin | Guangdong, China |
| Warranty | 1 Year Limited Warranty |
Packing List / Included Documentation
1x AOTELEC AOT-M-S-200 Stacking Machine
Machinery Test Report (Provided)
Video Outgoing-Inspection Record (Provided)
User Manual & Setup Guide
