Description

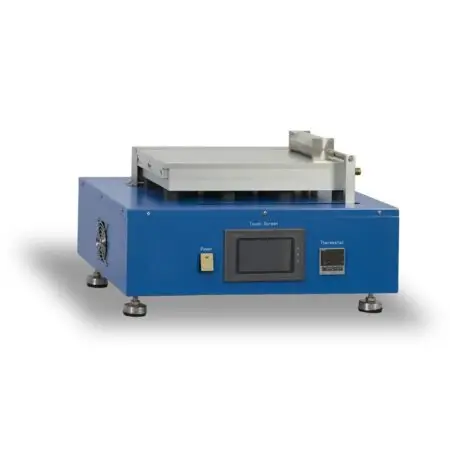

The Lab Electrode Heating Film Coater Coating Machine is a high-precision laboratory coating system designed for lithium-ion battery electrode fabrication, material research, and pilot-scale testing.
Equipped with a vacuum aluminum plate and intelligent touch screen control, this machine ensures uniform slurry coating, excellent adhesion, and consistent film thickness—critical for advanced battery performance evaluation.
Its compact design and stable coating system make it ideal for battery R&D labs, universities, and material development teams seeking repeatable and scalable coating processes.
Key Features
1. High Precision Coating Performance
- Coating thickness accuracy up to 0.01 mm
- Ensures uniform electrode layer for reliable electrochemical testing
- Suitable for cathode, anode, and functional film coating
2. Adjustable Coating Speed
- Speed range: 0–120 mm/s
- Flexible adjustment for different slurry viscosities and coating requirements
- Supports both slow precision coating and faster experimental runs
3. Vacuum Aluminum Plate Design
- High flatness vacuum plate ensures strong substrate adsorption
- Prevents wrinkles, bubbles, and coating defects
- Plate size: 415 × 200 × 32 mm
4. Integrated Heating System
- Heating-assisted coating improves slurry leveling and drying uniformity
- Enhances coating quality for high-performance battery electrodes
5. Intelligent Touch Screen Control
- User-friendly interface for precise parameter setting
- Real-time monitoring of coating process
- Improves operational efficiency and repeatability
6. Compact and Stable Structure
- Desktop design with small footprint
- Stable mechanical structure reduces vibration
- Ideal for laboratory environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Coating Speed | 0–120 mm/s |
| Coating Thickness Accuracy | 0.01 mm |
| Vacuum Plate | Aluminum vacuum plate |
| Plate Size | 415 × 200 × 32 mm |
| Power Supply | AC 220V / 50Hz |
| Power | 1 KW |
| Machine Dimensions | 530 × 420 × 260 mm |
| Weight | 50 KG |
| Origin | China |
| Warranty | 1 Year |
Applications
This laboratory coating machine is widely used in:
- Lithium-ion battery electrode coating (cathode & anode)
- Solid-state battery material research
- Supercapacitor electrode preparation
- Thin film material coating experiments
- University and research institute labs
- Pilot-scale battery production validation
Why Choose This Lab Coating Machine
- High coating precision ensures reliable experimental data
- Vacuum plate improves coating consistency and quality
- Adjustable speed supports multiple coating scenarios
- Compact design fits modern laboratory setups
- Ideal for both R&D and small-scale production testing
